Description

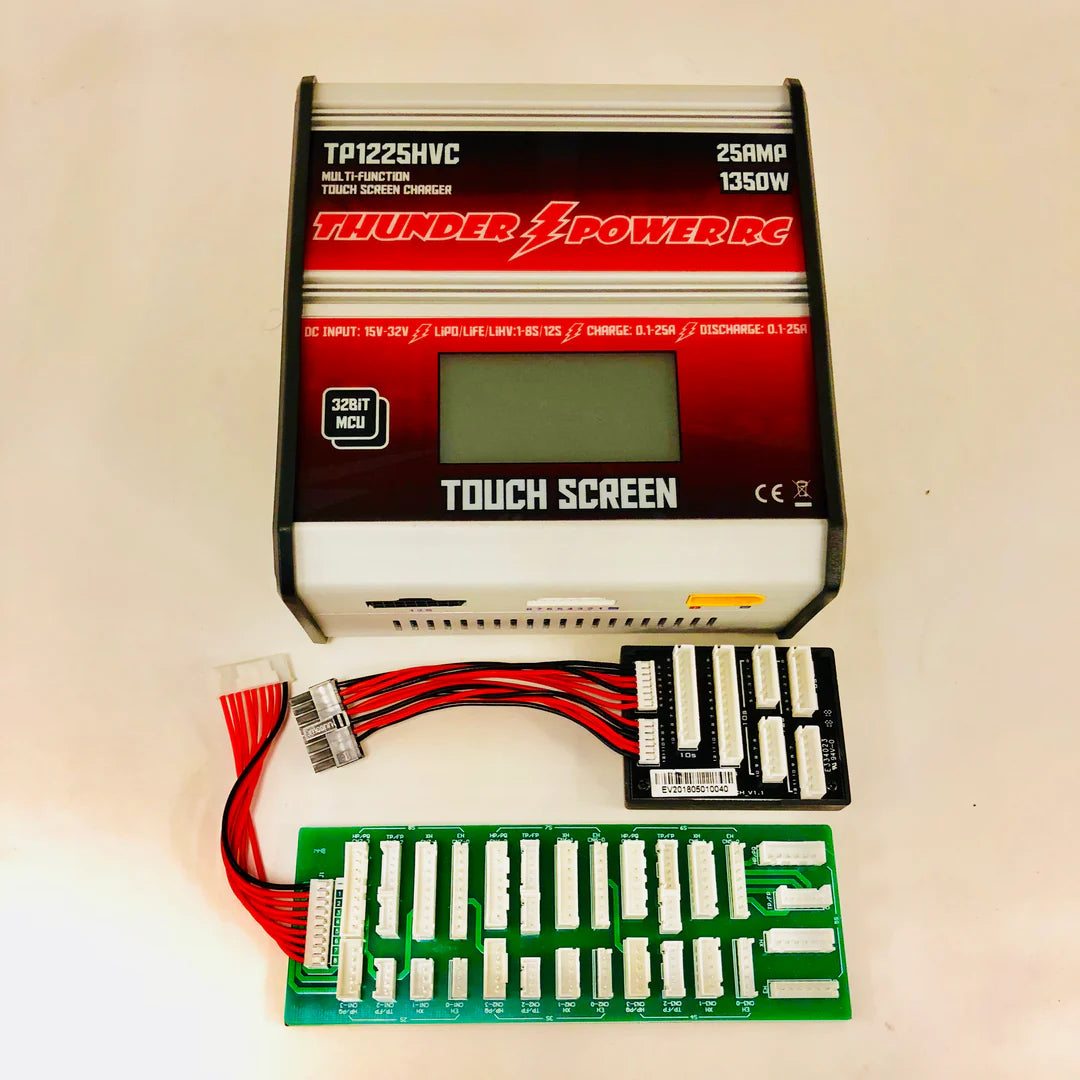

TP1225HVC charger set comes with 1 up-to-8S balancing board, 1 up-to-TP1225HVC charger set comes with 1 up-to-8S balancing board, 1 up-to-12S balancing
up to 4.5V Termination
TP1225HVC User Manuel Download
|
AC input voltage |
100V-220V |
| DC input voltage | 15V-32V |
| Channel | |
| Charge power | max 1350W |
| Discharge Power | max 100W |
|
Charge current |
0.1-25A |
|
Discharge current |
0.1-25A |
|
Balance tolerance |
+-0.01V |
|
LiPo/Li-ion/Life battery cell count |
1-12S |
|
NiMH/NiCc battery cell count |
1-12cells |
| Pb battery voltage |
2-24V |
| Dimension |
154*162*84mm |
| Weight |
1450g |
TP1225HVC
$229.99
