Description

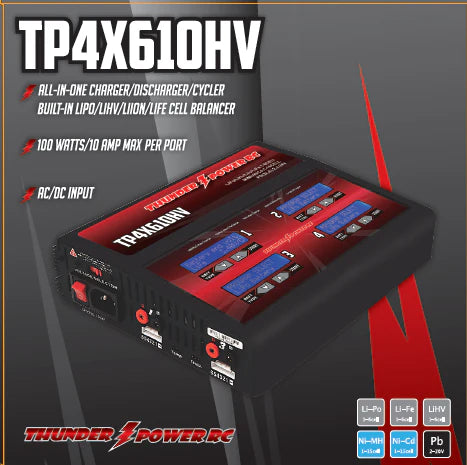

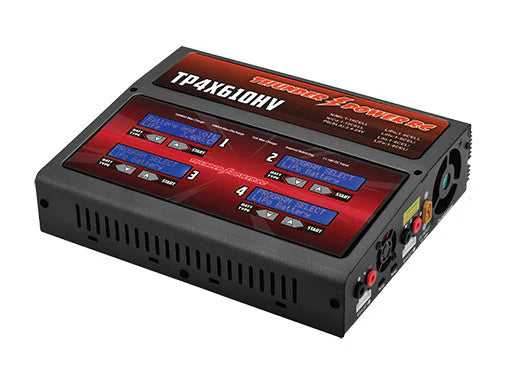

Thunder Power RC QUAD 4 X 100W AC/DC CHARGER (TP4X610HV)
*All in one charger/discharger/cycler/
built in LiPo/LiHV/Lion/LIfe cycle balancer*
*100 Watts/10 AMP max per port*
*AD/DC Input
The charger set comes with 2 dean connectors, 2 XT60 connectors, 4 up-to-6S balancing boards, a power lead and a cable for charging with 12V power.
TP4X610 User Manuel Download
|

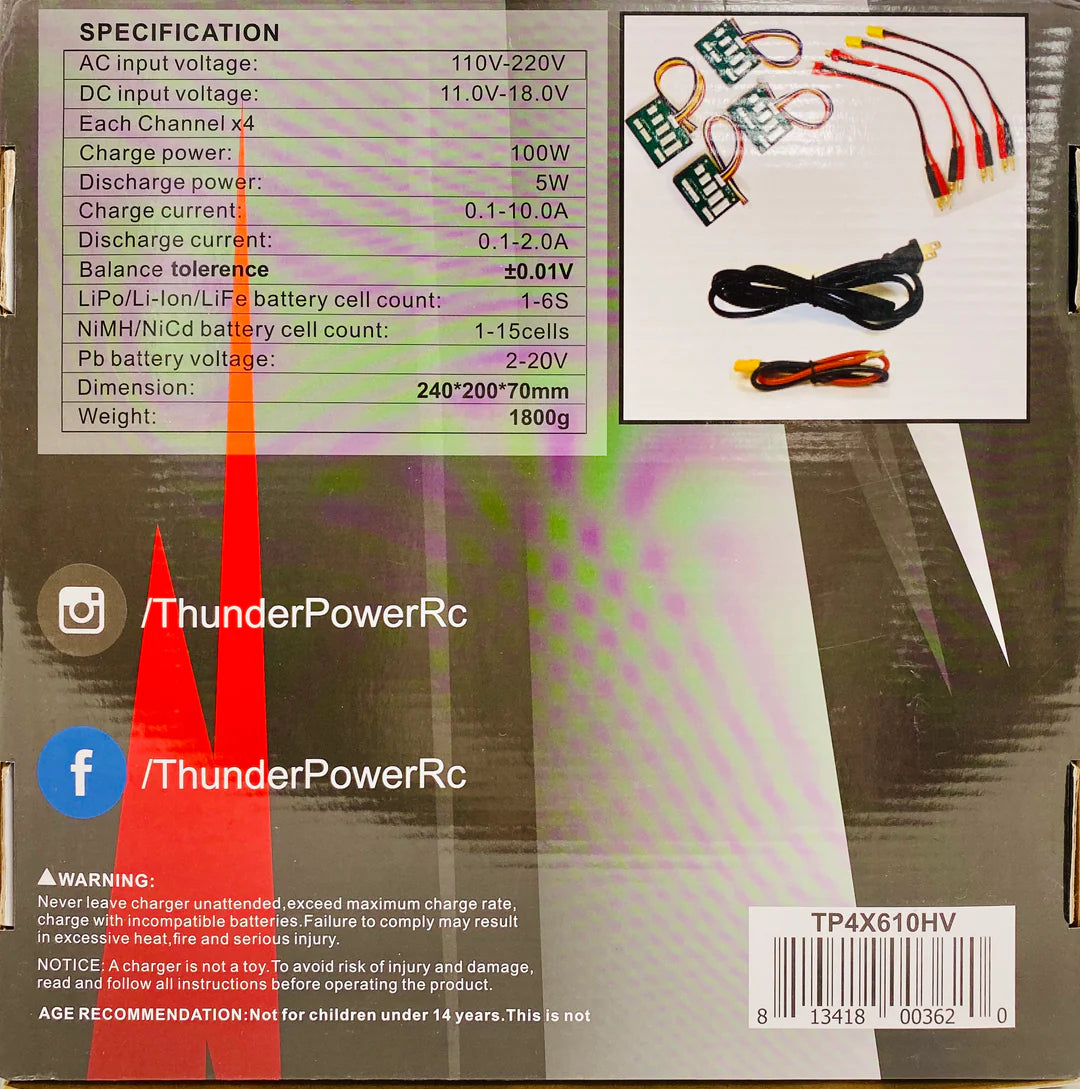

AC input voltage |
100V-220V |
| DC input voltage | 10V-18V |
| Channel | 4 |
| Charge power | 100W |
| Discharge Power | 5W |
|
Charge current |
0.1-10A |
|
Discharge current |
0.1-2A |
|
Balance tolerance |
+-0.01V |
|
LiPo/Li-ion/Life battery cell count |
1-6S |
|
NiMH/NiCc battery cell count |
1-15cells |
| Pb battery voltage |
2-20V |
| Dimension |
240*200*70mm |
| Weight |
1800g |
TP4X610HV
$239.99
