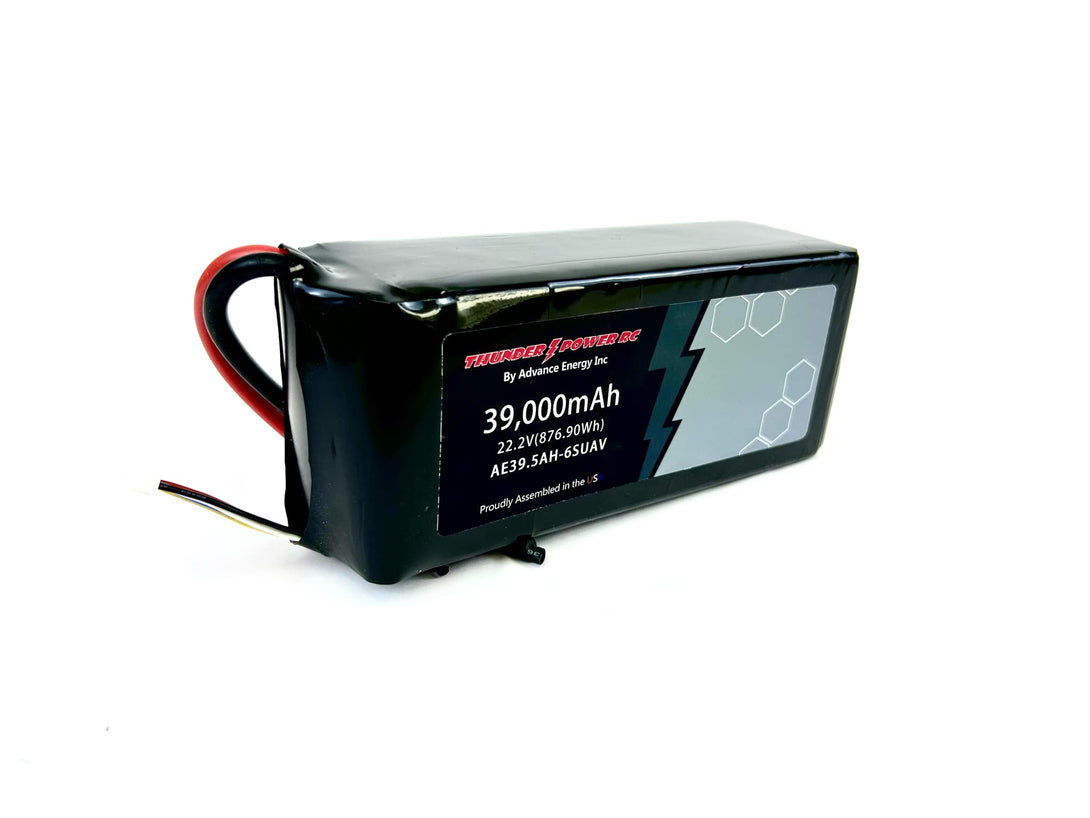

Performance-Tuned Lithium Polymer Battery – Advance Energy Inc.
Advance Energy Inc. presents a performance-tuned lithium polymer (LiPo) battery engineered to deliver the ideal mix of energy density and discharge capability. Designed for next-generation unmanned systems, this battery supports both sustained endurance and responsive power delivery in one lightweight package.
Perfect for hybrid VTOLs, multi-role drones, and platforms with fluctuating power demands, it provides reliable energy under dynamic loads—making it a versatile solution for a wide range of mission profiles.
Key Features:
• Tuned for both high energy density and moderate-to-high discharge rates
• Lightweight design optimized for aerial and mobile applications
• Reliable under demanding thermal and electrical conditions
• Supports quick bursts of power without sacrificing endurance
• Suited for platforms requiring adaptable energy performance
Advance your system with a LiPo battery engineered for real-world versatility and mission-ready performance.
AE39.5AH-6SUAV-AE-TP Spec Sheet Download
| Capacity mAh | 39500mAh |
| Voltage | 21.6V |
| Wh | 876.0Wh |
| Voltage Range | 15.8V - 25.2V |
| Energy Density | 336Wh-Kg |
| Dimensions (WxTxL) | 66x89x207mm |
| Weight (g) | 2680g |
| Internal Impedance (1KHZ AC) | 12.7mΩ |
| Continous Discharge Rate | 156A (2C) |
| Peak Discharge Rate | 276A (7C) 3 sec |
| Max Charge Rate | 39.5A (1C) |
